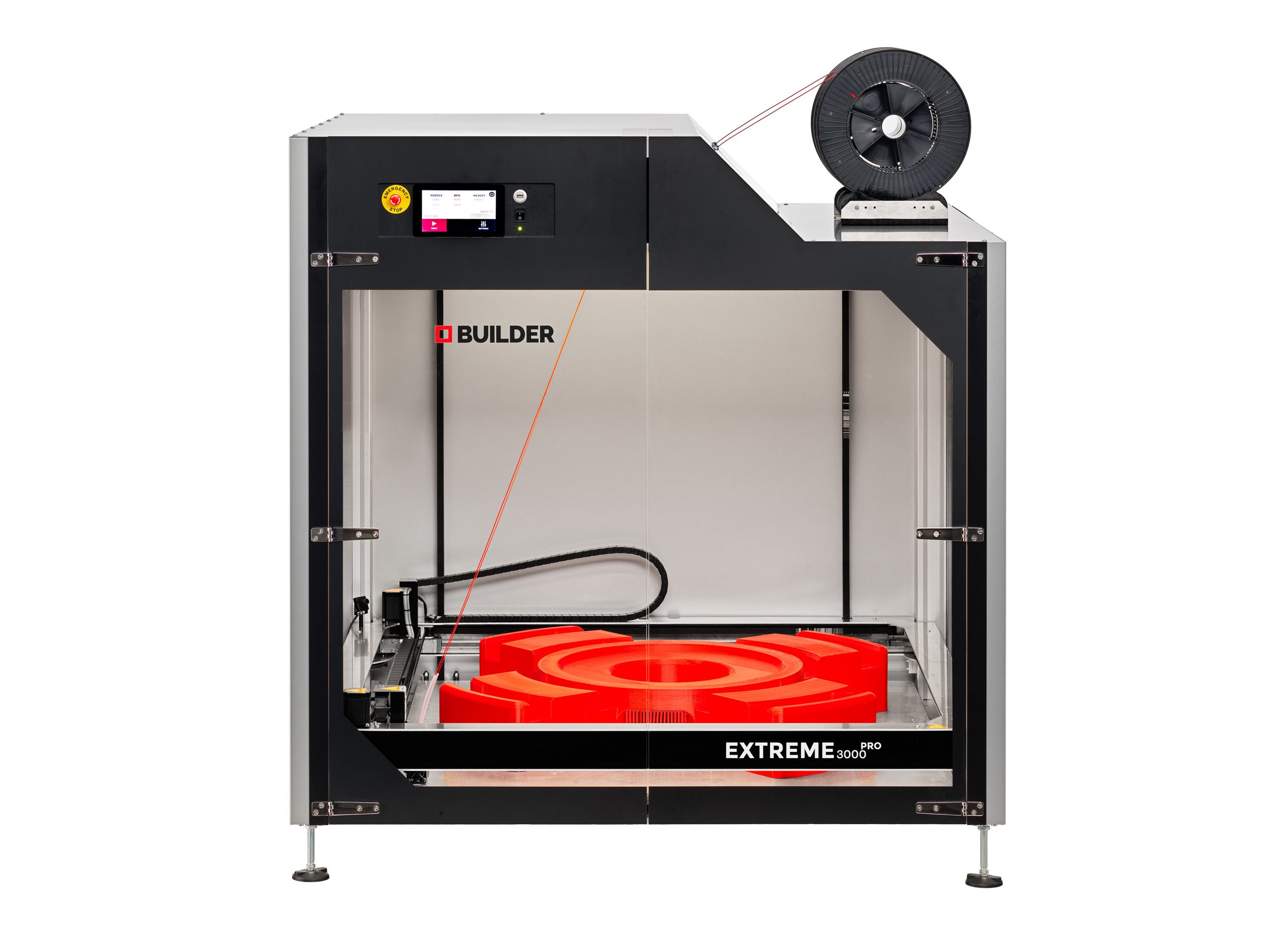

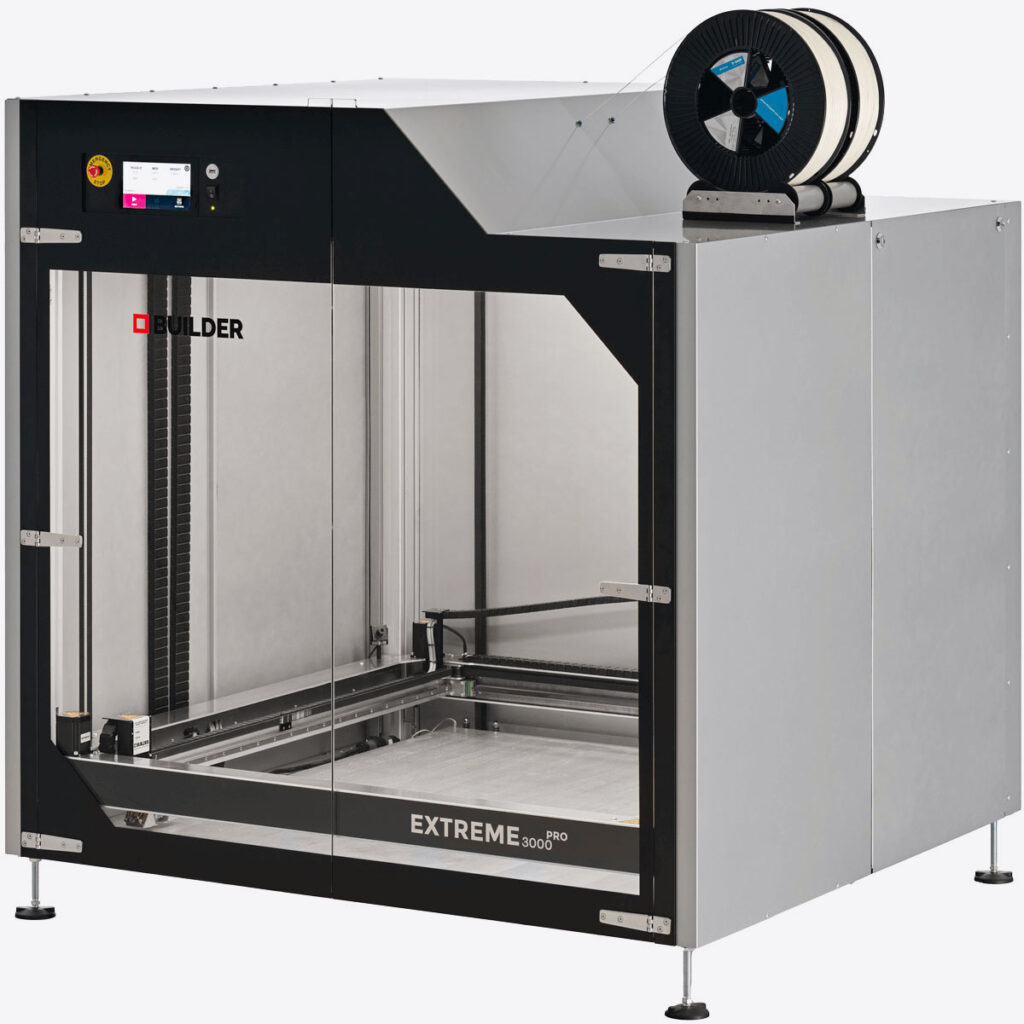

Builder Extreme 3000 Pro

Builder Extreme 3000 Pro

The perfect fit for industrial applications.

The Extreme 3000 PRO is made to deliver 24/7. With the extremely large build volume of 1100x1100x820 mm XYZ it is the perfect fit for industrial applications. With large format 3D printing you have full design freedom and are able to print large parts in one piece. The frame has been designed in a way that you have easy access to the build plate from both sides by removing the side panels. 3 different nozzles diameters, 0.4, 0.8 and 1.2 mm, are included to optimise print quality and time for your specific needs. The machine is fully equipped with features such as a heated bed, filament detection, a battery pack and auto bed levelling.

Luft- & Raumfahrt

Architektur

Automobil­industrie

Handels­güter

Bildungs­wesen

Medizin

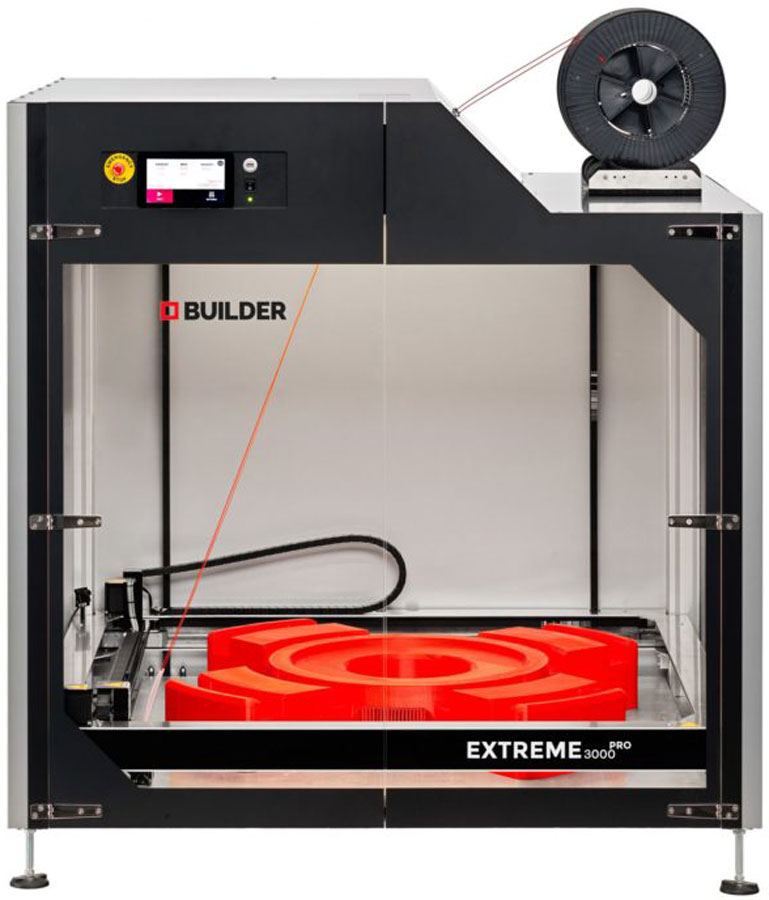

Extremely large build volume

The Extreme 3000 PRO has an extremely large build volume of 1100x1100x820 mm XYZ. This allows you to print full size prototypes, parts, statues in one piece. The build volume of just under 1 m3 is the perfect size for 3D printing industrial applications.

0,4–1,2 mm

Düsengröße

260°C

Extruder Temperatur

80–300 mm/s

Druckgeschwindigkeit

1.100 x 1.100 x 820 mm

Druckvolumen

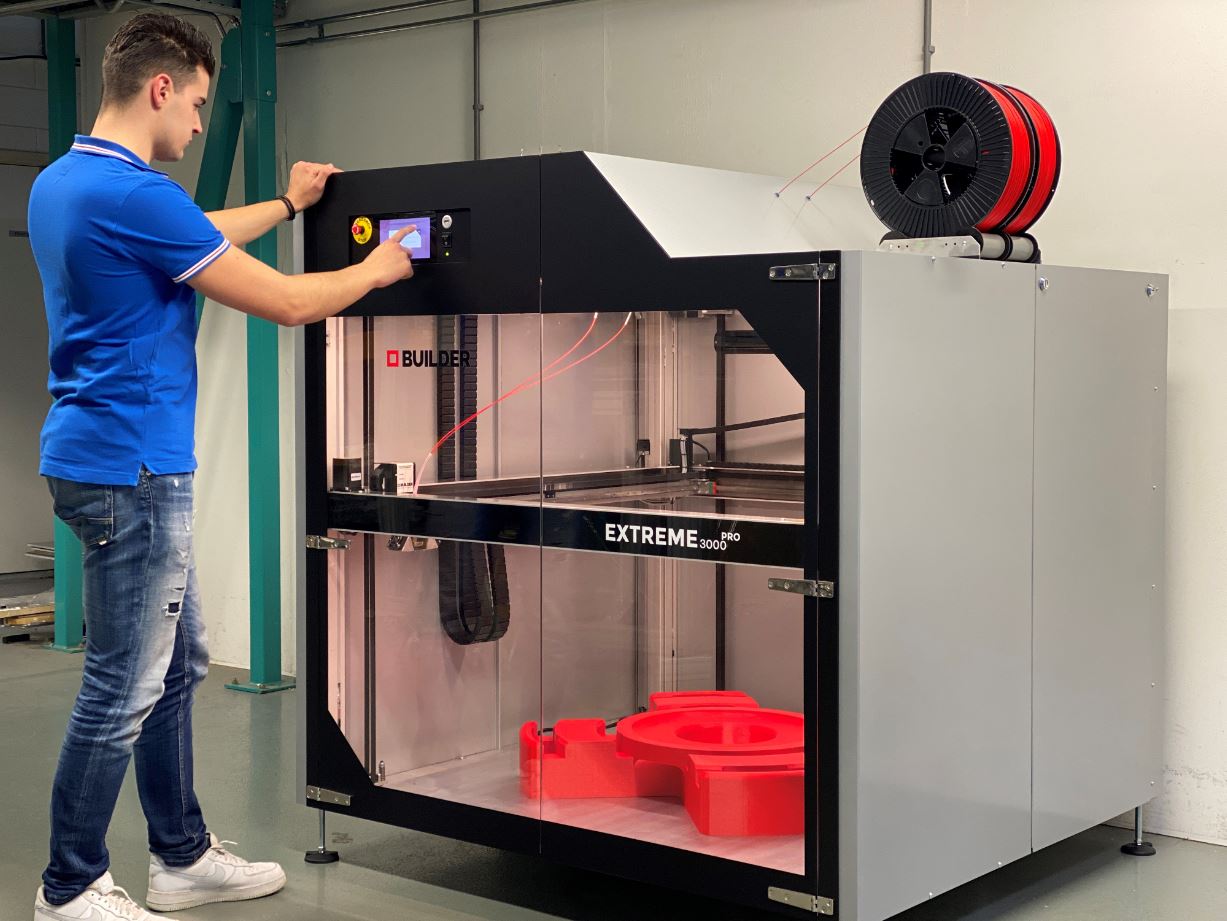

Easy to use

Despite the large build volume the machine is easy in its use. The large touch display allows you to have full adjustment control over the machine while printing. Large format 3D printing becomes easy and worry free with features such as filament detection and a battery pack when there is a power loss.

Different nozzle diameters

The Extreme 3000 PRO comes with 3 different nozzle diameters which allow you to choose the right print quality and time for your specific needs. A 0.4, 0.8 and 1.2 mm nozzle are included with the purchase. The 0.4 mm nozzle is often used for parts that need to be accurate, the 0.8 mm for printing prototypes within days and 1.2 mm for printing parts within several hours and parts that will be post processed.

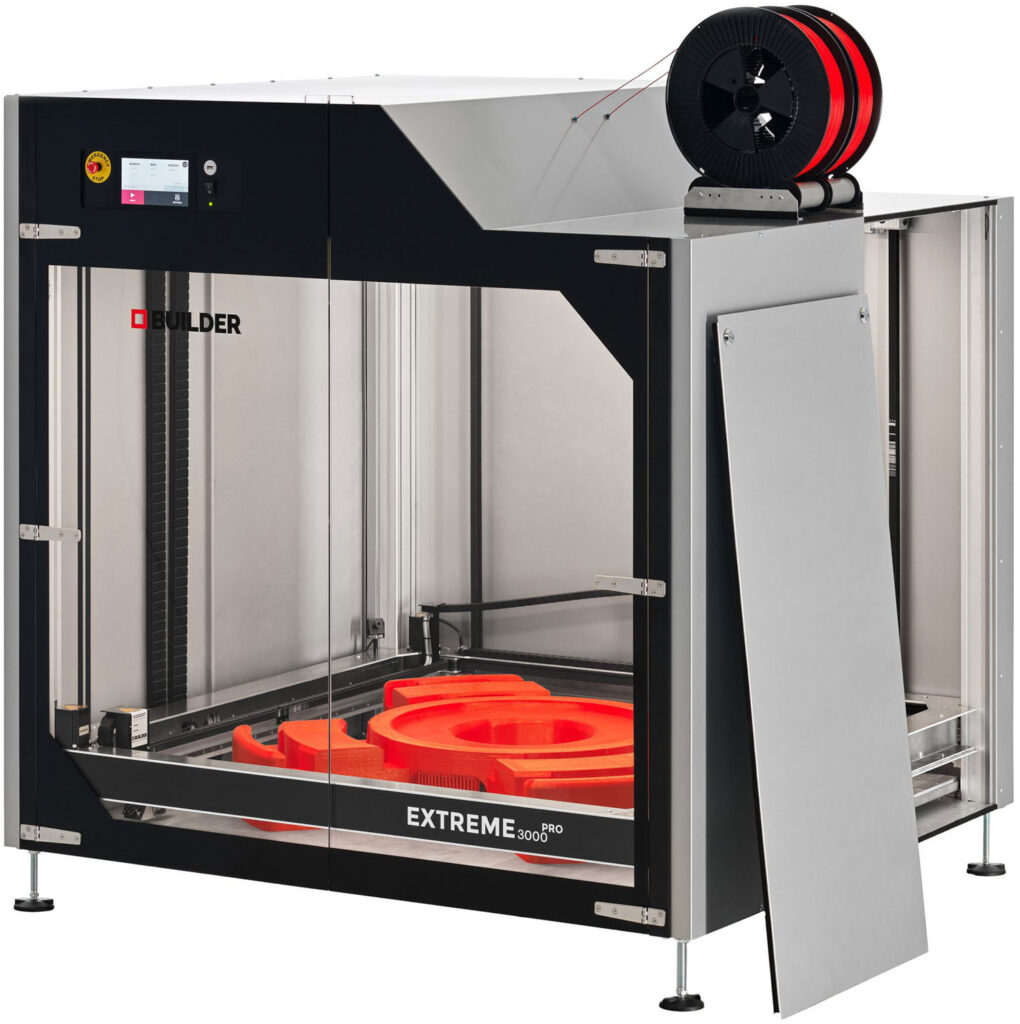

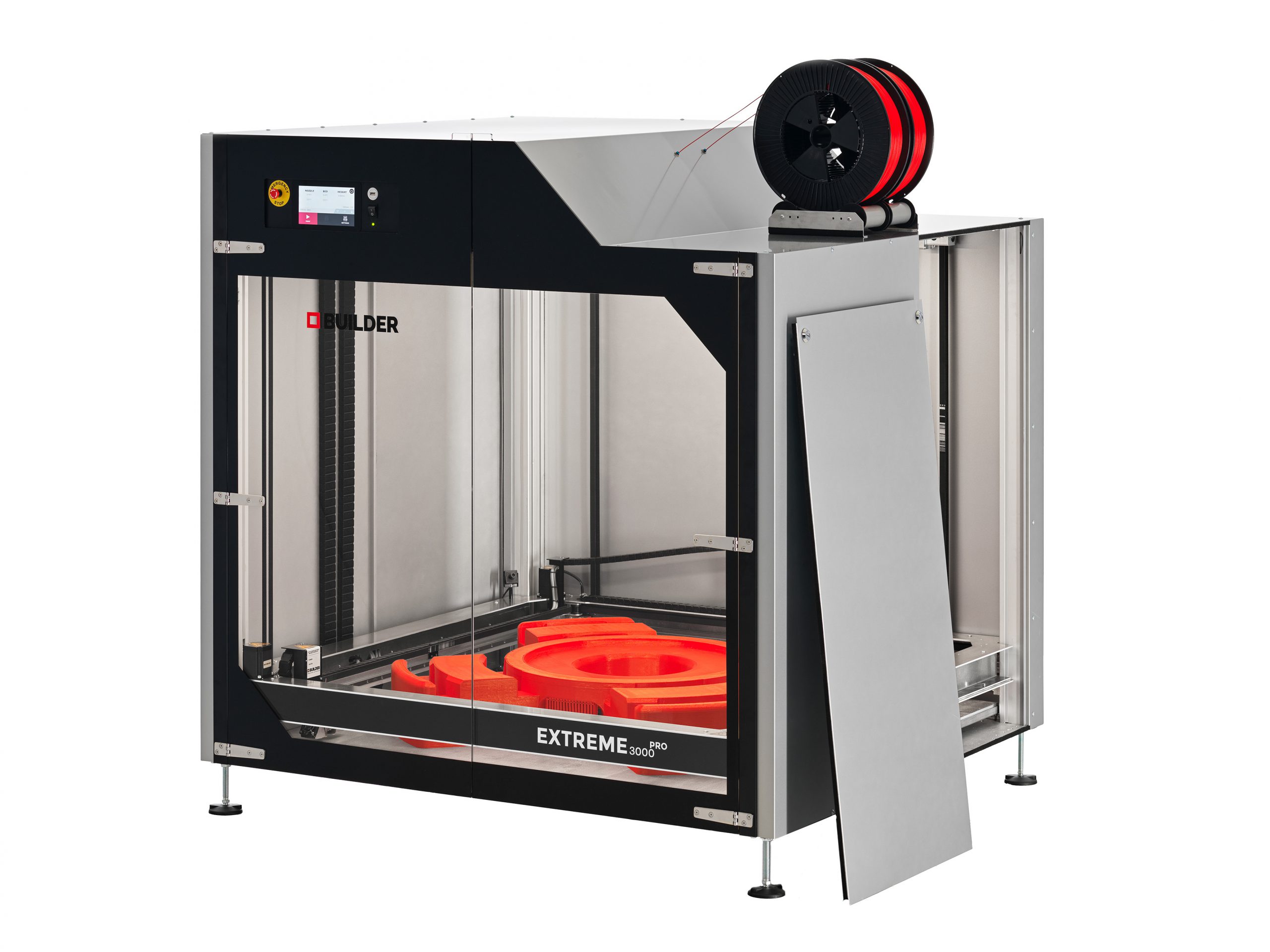

Easy access

The Extreme 3000 PRO has been designed to print extremely large parts, but you also need to be able to remove the printed parts easily. That is why the machine has removable panels on the left and right side. By removing the panels, you have easy access to remove prints or do any maintenance to the machine if needed.

Materialien für Builder Extreme 3000 Pro

S-Flex 90A™

Wo Langlebigkeit und Flexibilität entscheidend sind

rPLA

Ökologischer 3D-Druck

ASA 275™

Beständigkeit gegen UV-Strahlung und mechanische Festigkeit

rPETG

Ökologischer 3D-Druck

Builder Extreme 3000 Pro Webinar

Damit Sie mit Ihrem neuen 3D-Drucker schnell produktiv arbeiten können, bieten wir Ihnen unseren Schnellstart-Kurs in Form eines Webinars (Web-basiertes Seminar) an: Nach 120 Minuten verstehen Sie die Funktionsweise der 3D-Drucksoftware.
Ablauf des Webinars
  • Einführung in die Funktionsweise und Bedienung der 3D-Drucksoftware
  • Überblick über die Bedeutung der Einstellungen
  • Die richtigen Einstellungen für Ihren perfekten 3D Ausdruck!
  • Tipps & Tricks
  • Trouble Shooting – Ursachen und Lösungen für die häufigsten Probleme
Voraussetzungen
  • Vorhandener, einsatzbereiter PC mit Windows 7, 8 oder Mac OS X mit vollen Administrator-Rechten
  • Internetzugang
  • Bereits installierte und funktionsbereite TeamViewer oder Microsoft Teams Software

Die Details zum Termin und der Webinar-Software werden nach Eingang Ihrer Bestellung abgesprochen.

Support und Service

  • Professionelle Beratung
  • Musterdruck Erstellung
  • Individuelle Pakete für Industriekunden
  • Einschulung vor Ort
  • Servicepaket mit kostenlosem Telefon- und Email Support
  • Gesamtlösung mit Waschstation
  • Bauteiloptimierung via Fernwartung
  • Materialversuche
  • Prozessoptimierungen
  • Kundenspezifische Seminare vor Ort
  • Vor Ort Service

Technische Daten

TechnologyFused Filament Fabricat ion (FFF)
Print headDual extruder with one nozzle (3 nozzle diameters included)
Build size1100x1100x820 (XYZ)
Noozle diameter0.4 mm standard. 0.8 and 1.2 are included
Layer resolution0.4 mm nozzle – 0.1 – 0.3 mm
0.8 mm nozzle – 0.2 – 0.7 mm
1.2 mm nozzle – 0.3 – 0.9 mm
Print speedup to 300 mm p/s (standard speed 80 mm p/s)
Build plateHeated aluminium plate up to 60 degrees
Operating sound<30 db
Operating temp15 – 25 degrees Celsius
ConnectivityUSB, Wi-Fi, LAN
Physical dimensions1500x1380x1550
Weight285 kg
Electrical requirements1800 watts
SoftwareSupplied software: Simplify3D
Supported: MAC, Windows
