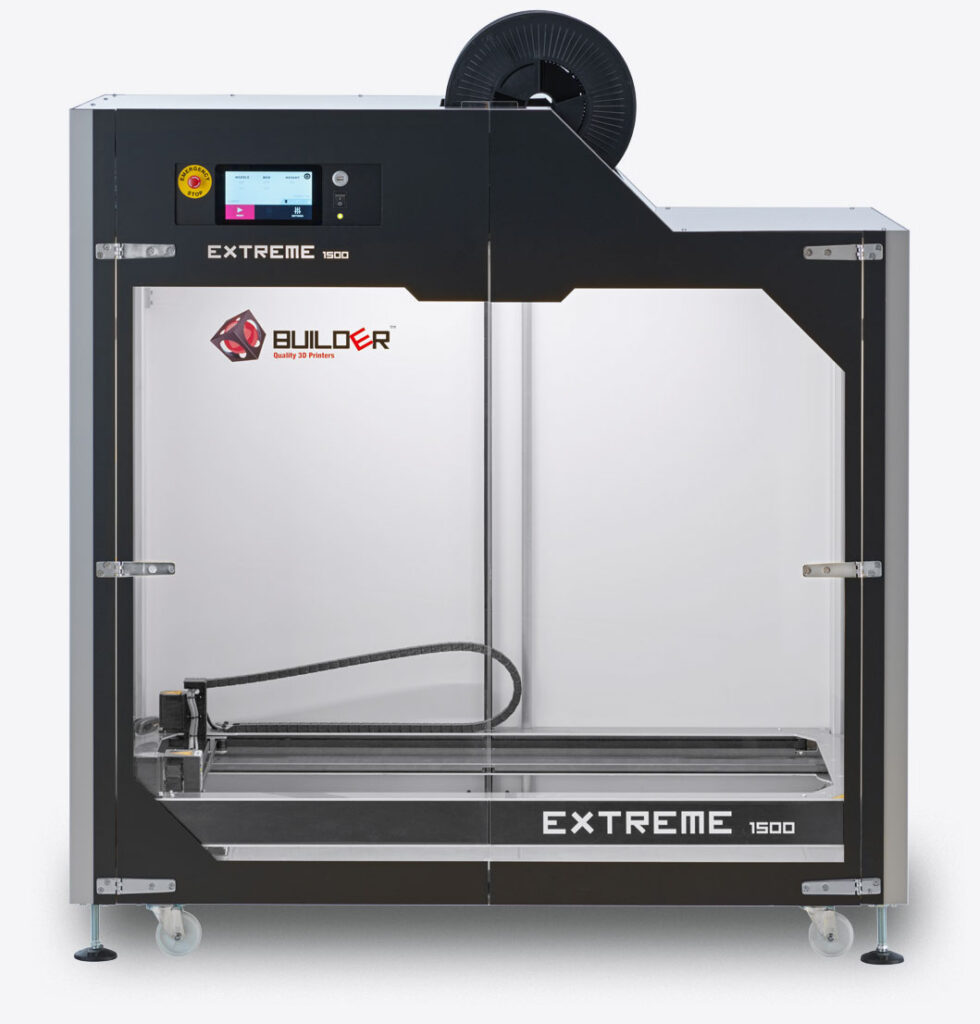

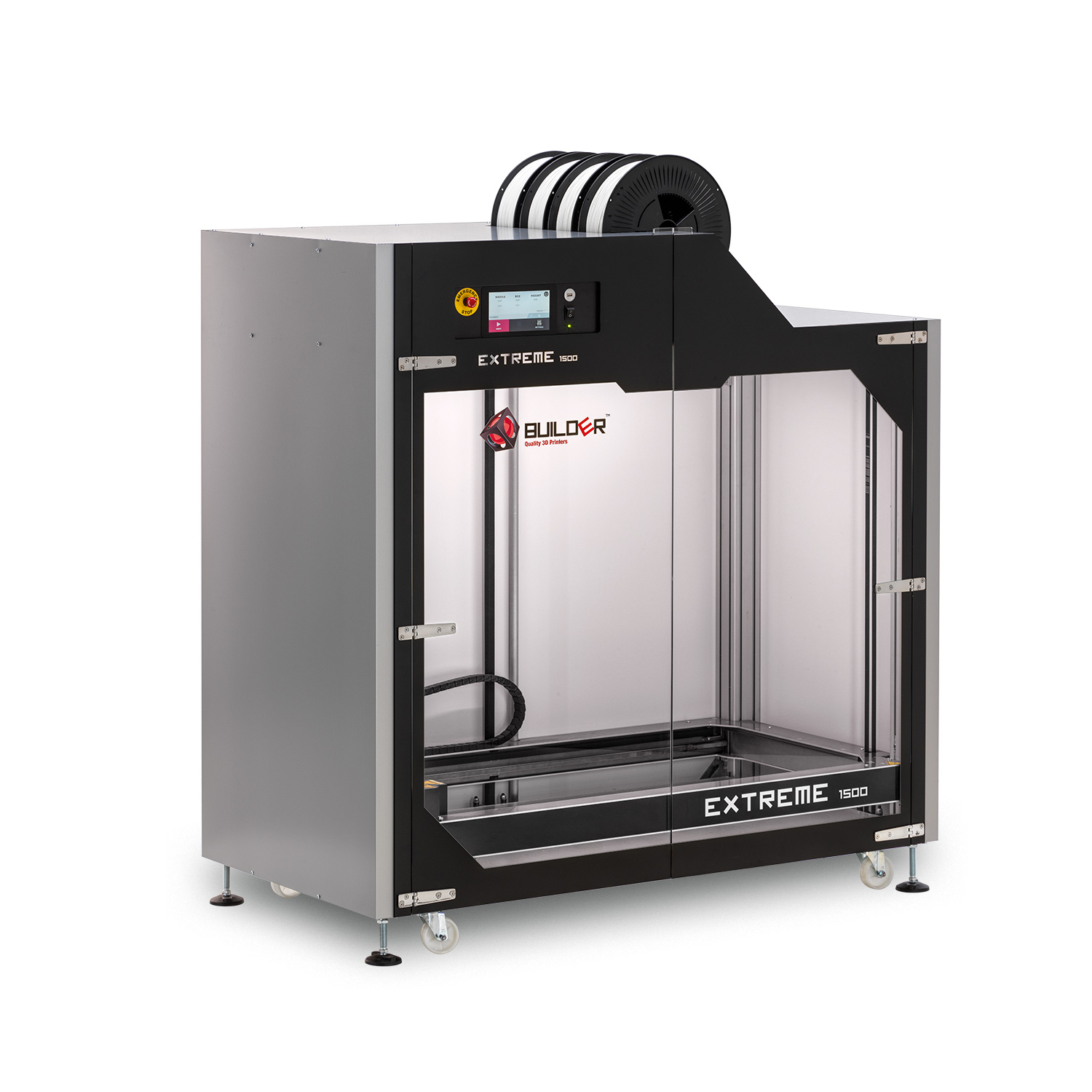

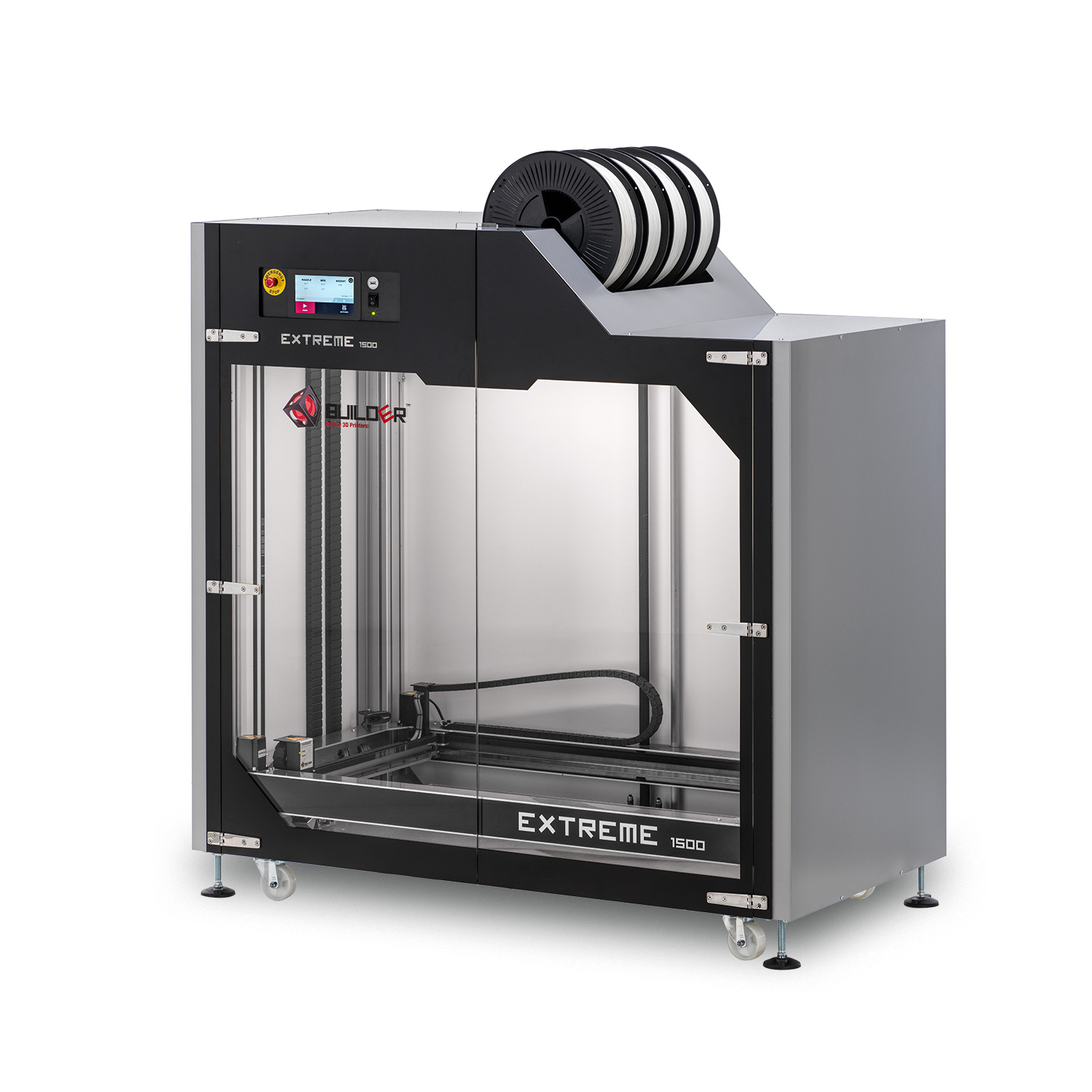

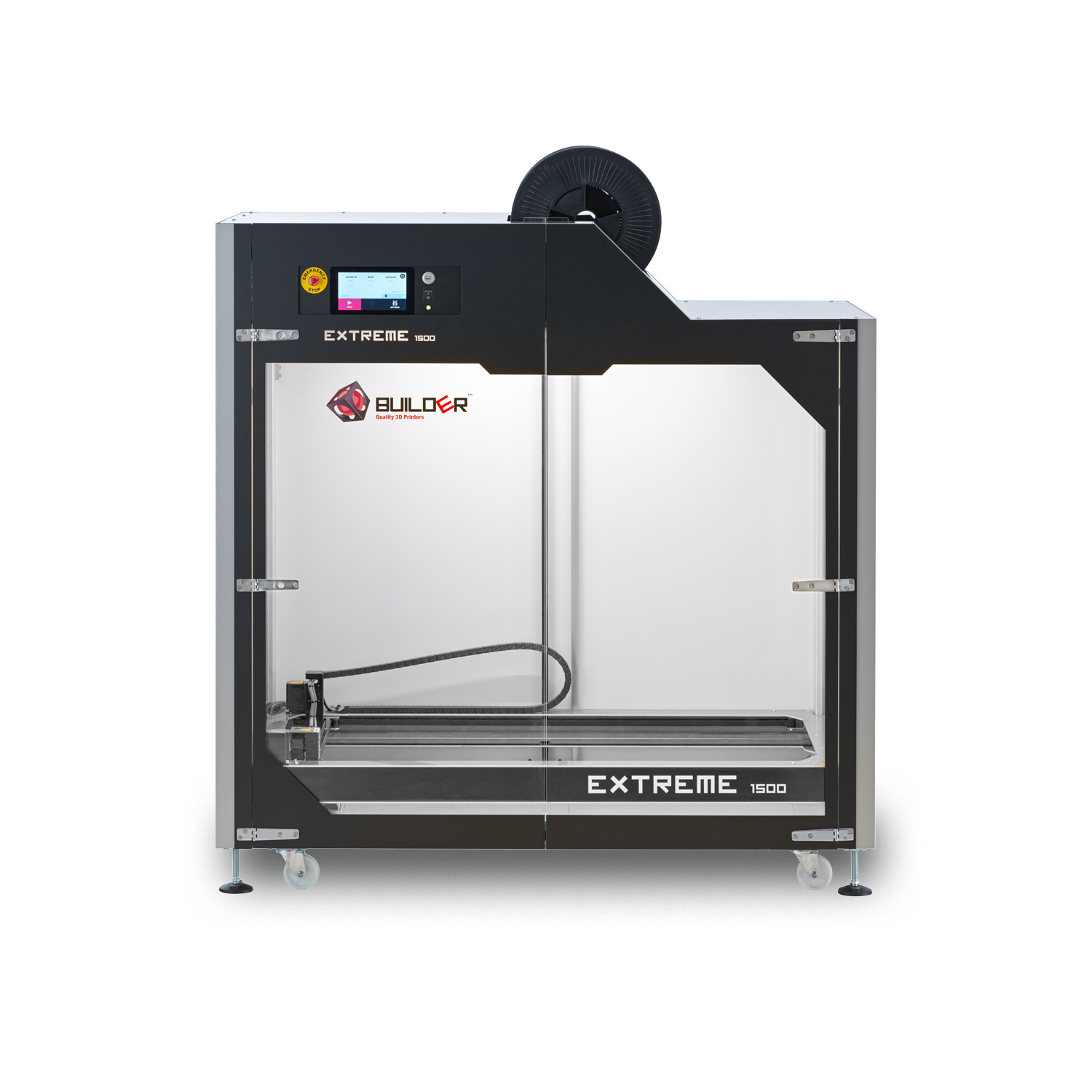

Builder Extreme 1500 Pro
Large scale 3D printing made affordable and accessible.
The Extreme 1500 PRO is one of the biggest FDM 3D printers available. With a build volume of 1100x500x820 mm, it allows you to print extremely long and large prototypes/objects. The Builder Extreme comes with many features such as a 7 inch touch display, heated bed, filament detection and an integrated ups system – resume after power outage. These features make large scale 3D printing worry free.
Luft- & Raumfahrt
Architektur
Automobilindustrie
Handelsgüter
Bildungswesen
Medizin
Dual-Feed extruder
The Builder Extreme 1500 PRO comes with a versatile Dual-Feed extruder. The extruder is able to print Dual color/material objects, but can also be used as a Mono extruder. Insert 2 spools of the same color, change the extruder ratio of both motors to 50% and the Dual becomes a Mono extruder. You can even use the Dual- Feed extruder to print color mixed objects as the extruder has 1 nozzle.
0,4–1,2 mm
Düsengröße
260°C
Extruder Temperatur
10–100 mm/s
Druckgeschwindigkeit
1100 x 500 x 820 mm
Druckvolumen
Perfect fit
The Extreme 1500 PRO has a huge print volume but due to the smaller Y axis, it’s able to fit through every door and can be placed in a room with very little space.
Move around

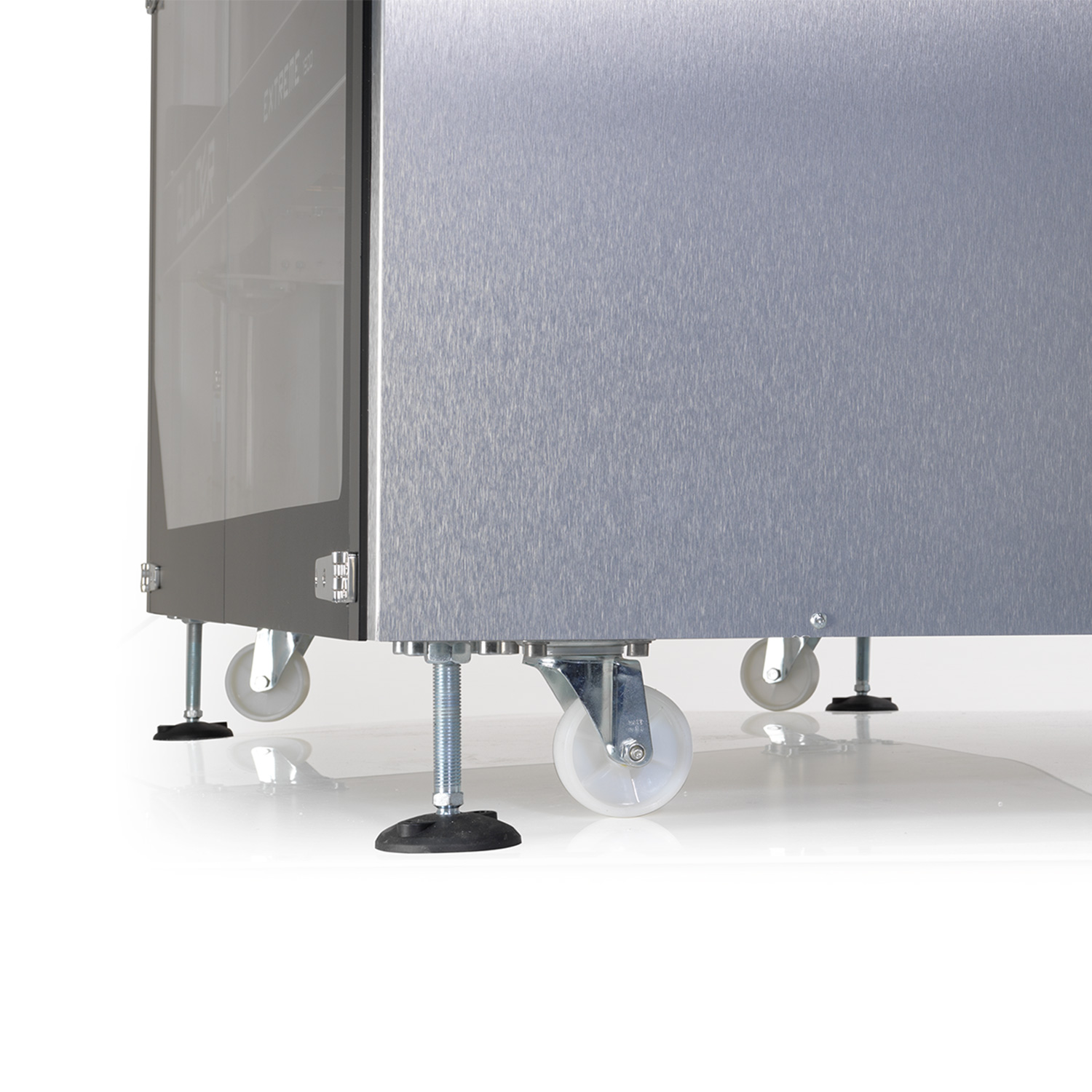

Industrial 3D printers are large and not mobile at all, but the Extreme 1500 PRO has 4 wheels on the bottom of the printer so it can be moved to the next department/location if needed.
Printing 24/7

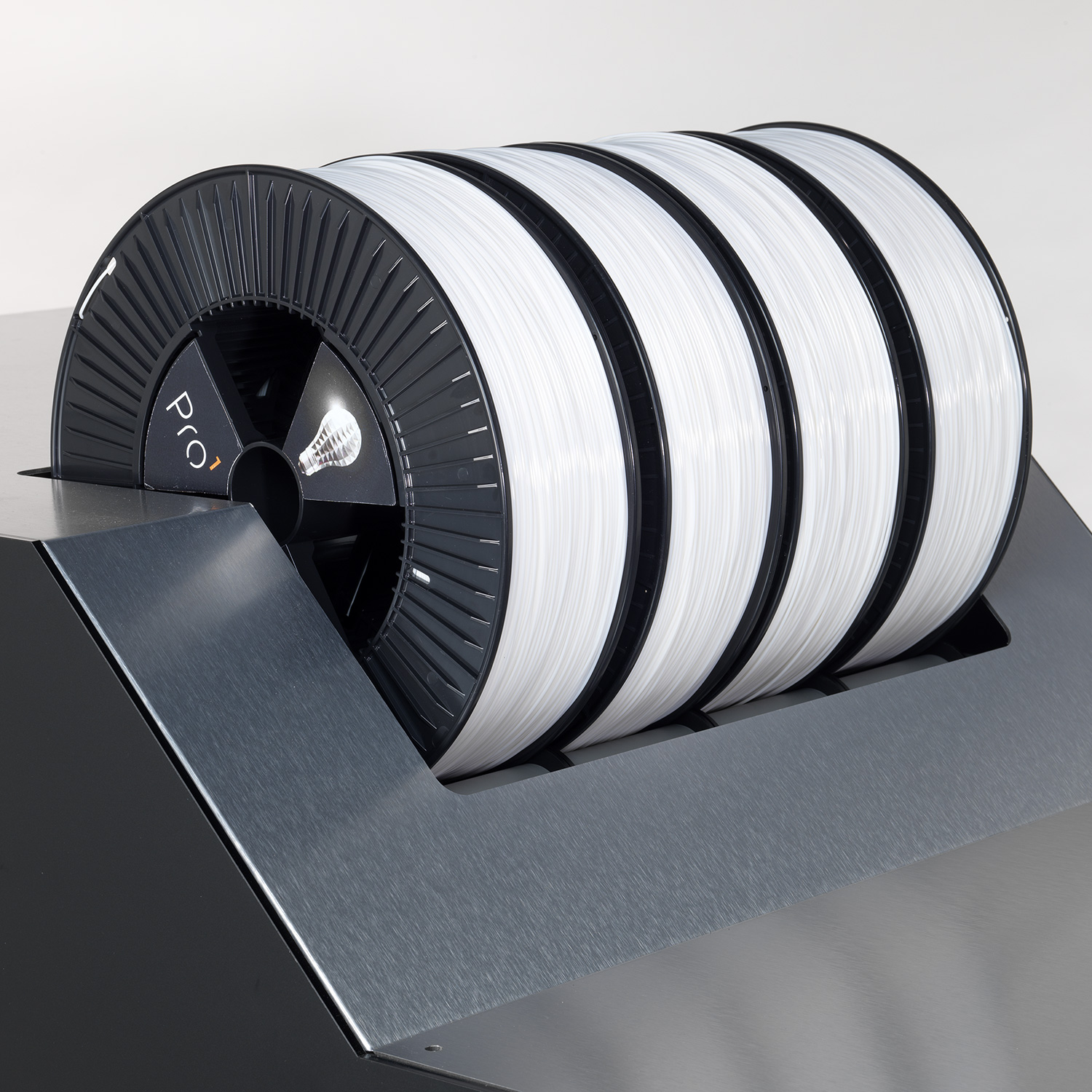

3D printing is the perfect tool to reduce costs and save time, especially when printing 24/7. The Builder Extreme is a reliable machine which can print hundreds of hours without stopping. The Builder Extreme is made in the Netherlands with high quality components like industrial linear guides. Running out of filament? No problem. The filament detection will give a warning when the filament needs to be refilled.
Materialien für Builder Extreme 1500 Pro
PA6 Low Warp CF15S™
Geringe Schrumpfung und hohe Festigkeit angereichert mit den Vorteilen der Carbonfaser
Builder Extreme 1500 Pro Webinar
Damit Sie mit Ihrem neuen 3D-Drucker schnell produktiv arbeiten können, bieten wir Ihnen unseren Schnellstart-Kurs in Form eines Webinars (Web-basiertes Seminar) an: Nach 120 Minuten verstehen Sie die Funktionsweise der 3D-Drucksoftware.
Ablauf des Webinars
- Einführung in die Funktionsweise und Bedienung der 3D-Drucksoftware
- Überblick über die Bedeutung der Einstellungen
- Die richtigen Einstellungen für Ihren perfekten 3D Ausdruck!
- Tipps & Tricks
- Trouble Shooting – Ursachen und Lösungen für die häufigsten Probleme
Voraussetzungen
- Vorhandener, einsatzbereiter PC mit Windows 7, 8 oder Mac OS X mit vollen Administrator-Rechten
- Internetzugang
- Bereits installierte und funktionsbereite TeamViewer oder Microsoft Teams Software
Die Details zum Termin und der Webinar-Software werden nach Eingang Ihrer Bestellung abgesprochen.
Support und Service
- Professionelle Beratung
- Musterdruck Erstellung
- Individuelle Pakete für Industriekunden
- Einschulung vor Ort
- Servicepaket mit kostenlosem Telefon- und Email Support
- Gesamtlösung mit Waschstation
- Bauteiloptimierung via Fernwartung
- Materialversuche
- Prozessoptimierungen
- Kundenspezifische Seminare vor Ort
- Vor Ort Service
Downloads
Technische Daten
| Print volume | 1100 x 500 x 820 mm (XYZ) |
| Extruder | Dual-Feed (one nozzle) |

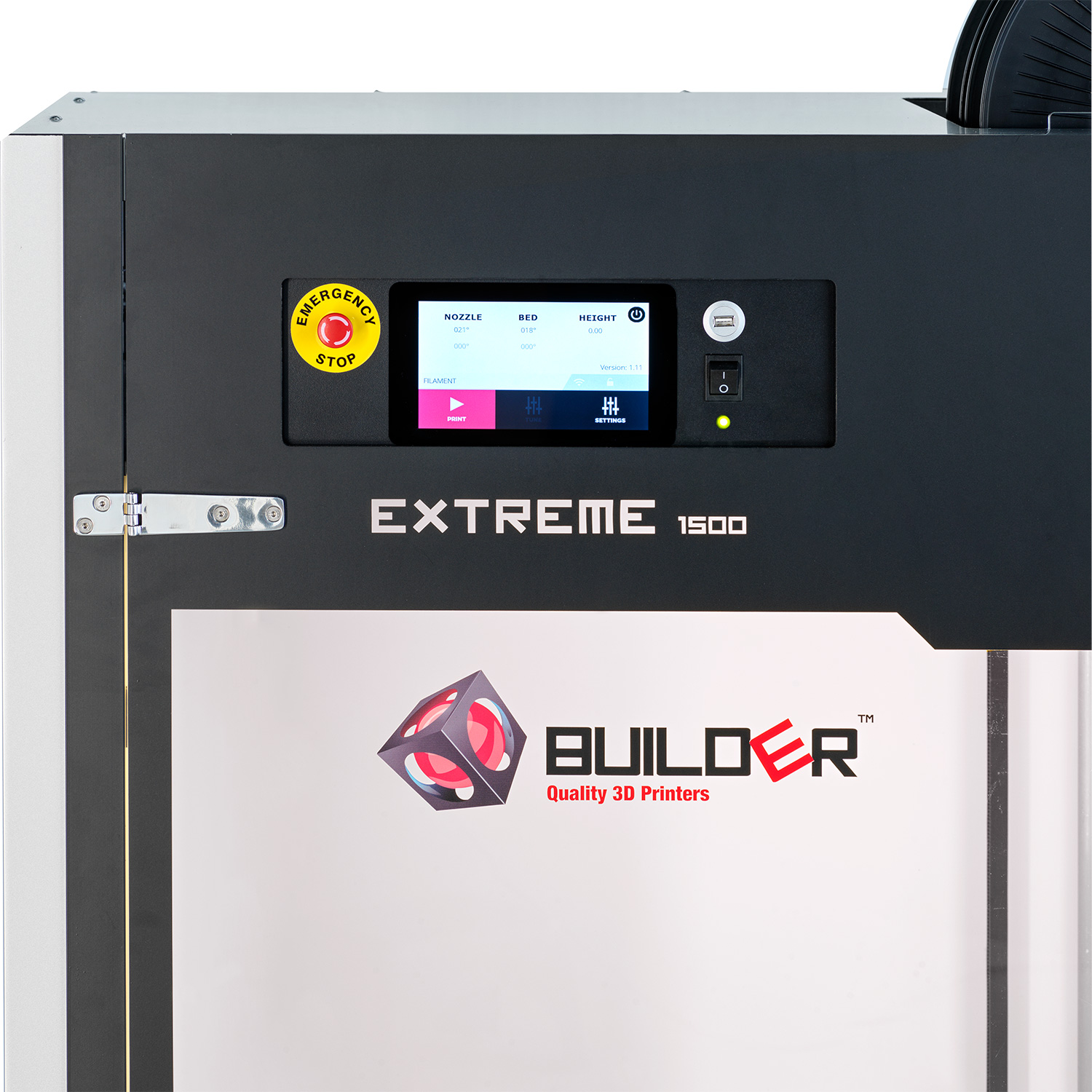

| Control with | 7 inch touch display |
| Print speed | 10 – 100 mm p/s |
| Color mix software | Mixing colors |
| Camera | On-board |
| Wi-Fi | WiFi / Ethernet |
| Software | Simplify3D |
| Outside dimensions without box | 151 x 79 x 155 cm (LxWxH) |
| Outside dimensions with box | 165 x 85 x 1800 cm (LxWxH) |
| Weight | 225 kg (without filaments) |
| Housing | Fully closed |

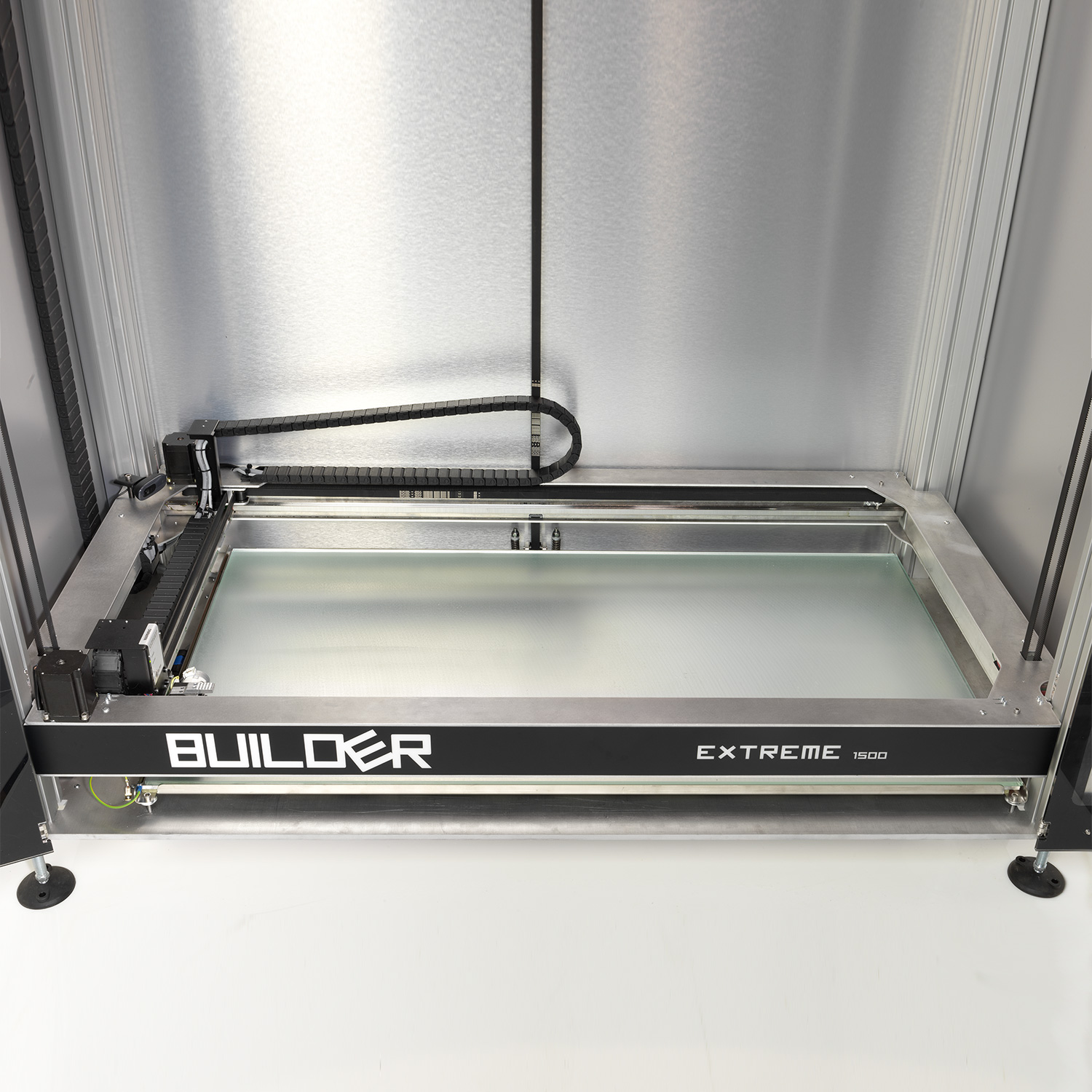

| Print bed | Heated glass (60 degrees) |
| Nozzle | 0.4, 0.8, 1.2 mm (delivered with the Extreme) |
| Nozzle temperature | Max. 260 degrees |
| Print material | PLA, PET, PVA, Woodfill, Bronzefill, Flexible filaments |
| Stand-alone | USB Stick |
| Filament detection | Integrated |
| Print bed | Semi-automatic bed leveling |
| Ups system | Resume after power outage |
| Remove Extreme from pallet | To remove the Extreme from the pallet, you need a forklift truck. |
