EinScan Pro HD
Multifunctional high-definition handheld 3D scanner.
As the latest member of the EinScan Pro series of multifunctional 3D scanners with a modular design, the EinScan Pro HD delivers unparalleled performance with high resolution and accuracy. Its exceptional versatility and powerful optimizations result in the ultimate highly efficient and professional 3D scanning experience. The EinScan Pro HD is the reliable assistant for designers and engineers whose priority is high-quality 3D scanning.
Aerospace
Architecture
Automotive Industry
Commercial Good
Education
Prototypes
Impressively high resolution for fine details
By integrating a new structured light projection module, the stripe pattern, which was previously only used in Fixed Scan Mode, can now also be applied in Handheld HD Scan Mode. The optimized algorithm allows a minimum point distance of 0.2mm, ensuring resolution and accuracy are as good as in Fixed Scan.
0,045 mm
Scan accuracy
0,2–3 mm
Point distance
3,000,000 points / 10 FPS
1,500,000 points / 30 FPS
Scan speed
209x160–310x240 mm
Scan area
High efficiency & quality
Production & Reverse Engineering, 3D modeling for personalized products, and 3D printing service
Unlimited inspiration
Art, culture & design
Healthcare
Digital medical analysis & orthopedics technology
Creative
Virtual Display
Fewer limitations for scan objects

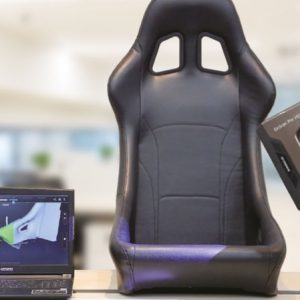

With the help of the new light projector hardware and the new software algorithm, the EinScan Pro HD can scan a wider variety of objects with dark, black, or shiny metallic surfaces. This expands the range of scannable materials.
High scan and data transfer speed
The EinScan Pro HD makes a dramatic advancement in scanning capacity. It can process up to 3,000,000 points per second in handheld mode. In fixed scan mode, it can process each scan in less than 0.5 seconds. A USB 3.0 connection provides high data transfer speeds.
High accuracy for high-quality 3D modeling
Depending on the positioning method, both the scanner and the objects being scanned can be moved during the scanning process. The accuracy in Fixed Scan Mode is 0.04 mm. With marker alignment in Handheld Mode, the volumetric accuracy is up to 0.045 mm + 0.3 mm/m.
Take the EinScan Pro HD with you anywhere
With its ergonomic design and lightweight, you can easily take the EinScan Pro HD anywhere. You can operate the scanner via plug and play without a complicated installation process. Thanks to its compact size, you can move the scanner freely without restrictions.
Modular design
Modular design enables versatile applications through various scan modes and data alignment.
The Color Pack and Industrial Pack can still be added as optional add-ons to the EinScan Pro HD, supporting more versatile applications. Various alignment methods, including feature alignment, marker alignment, turntable marker, manual alignment, and texture alignment (with the Color Pack), can greatly improve scanning efficiency without additional preparation.
Color Pack
Captures full-color texture with geometry. Improves scanning efficiency through texture alignment.
Industrial Pack

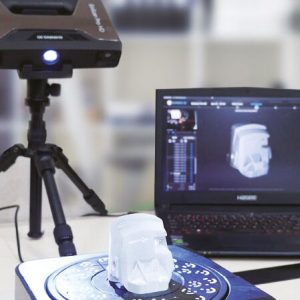

Makes a static automatic scan on a turntable possible for a better accuracy.
EinScan Pro HD Webinar
To help you quickly become productive with your new 3D scanner, we offer our quick start course in the form of a webinar (web-based seminar): In just 120 minutes, you'll understand how the 3D scanning software works.
Webinar Process
- Introduction to the functionality and operation of the 3D scanning software
- Overview of the importance of settings
- The right settings for your perfect 3D scan!
- Tips & Tricks
- Troubleshooting – Causes and solutions for the most common problems
Requirements
- Available, operational PC with Windows 7, 8 or Mac OS X with full administrator rights
- Internet access
- Already installed and functional TeamViewer or Microsoft Teams software
The details of the appointment and the webinar software will be discussed after receiving your order.
Support and Service
- Professional consultation
- Custom packages for industrial customers
- On-site training
- Service package with free phone and email support
- Complete solution with 3D printer
- Component optimization via remote maintenance
- Process optimizations
- Customized seminars on-site
- On-site service
Technical Specifications
| Scan Mode | Handheld HD Scan | Handheld Rapid Scan | Fixed Scan with Turntable (with Add-on: Industrial Pack) | Fixed Scan without Turntable(with Add-on: Industrial Pack) | ||||||||
| Scan Accuracy | up to 0.045 mm | up to 0.1 mm | 0.04 mm (single shot accuracy) | 0.04 mm (single shot accuracy) | ||||||||
| Volume Accuracy | 0.3 mm/m (Markers Alignment) | 0.3 mm/m (Markers Alignment) | / | / | ||||||||
| Scan Speed | 10 frames/s, 3,000,000 points/s | 30 frames/s, 1,500,000 points/s | Single Scan＜0.5 s | |||||||||
| Point Distance | 0.2 mm-3 mm | 0.25 mm-3 mm | 0.24 mm | |||||||||
| Single Scan Range | 209*160mm-310*240mm | |||||||||||
| Depth of Field | ±100 mm | |||||||||||
| Working Distance | 510 mm | |||||||||||
| Light Source | LED | |||||||||||
| Align Mode | Marker Alignment, Feature Alignment, Hybrid Alignment | Marker Alignment, Texture Alignment, Feature Alignment, Hybrid Alignment | Turntable Coded Targets, Feature, Marker, Manual Alignment | Marker, Feature, Manual Alignment | ||||||||
| Texture Scan | Yes (with Add-on: Color Pack) | |||||||||||
| Outdoor Operation | Set up the shelter or cover to avoid direct sunlight | |||||||||||
| Special Scan Object | For the transparent or highly reflective objects, please spray powder before scanning | |||||||||||
| Software Included | ExScan Pro, Solid Edge SHINING 3D Edition | |||||||||||
| Data Format | OBJ，STL，ASC ，PLY，P3，3MF | |||||||||||
| Scan Head Weight (include a USB cable) | 1.13 kg | |||||||||||
| OS System Support | Win10, 64bit | |||||||||||
| Recommended Configuration | Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G;interface: high-speed USB 3.0 | |||||||||||
| Required Configuration | Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G | |||||||||||
