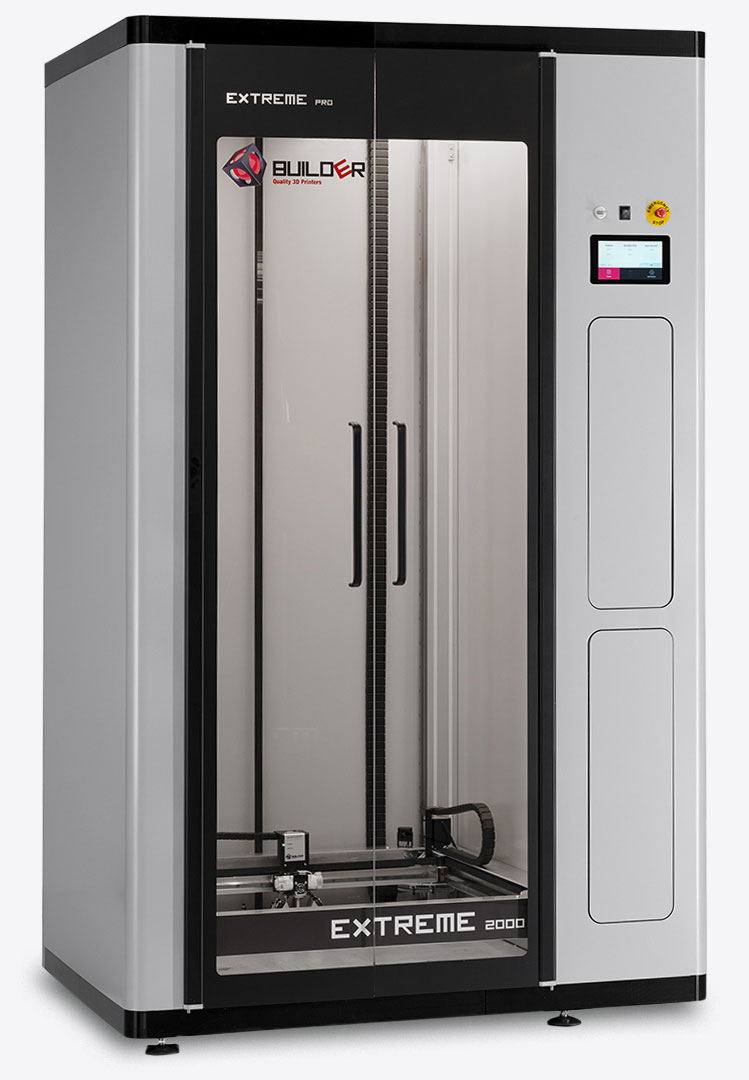

Builder Extreme 2000 Pro

Builder Extreme 2000 Pro

Our most advanced large scale 3D printer yet.

The Extreme 2000 PRO takes large scale 3D printing to a higher and more professional level. With its giant build volume of 700x700x1700 mm (XYZ), it’s one of the biggest FDM 3D printers available which makes it ideal for professional and industrial use. From 3D printing prototypes, moulds, tooling and more, the easy to use Builder Extreme 2000 PRO will print high quality industrial grade parts time after time.

Luft- & Raumfahrt

Architektur

Automobil­industrie

Handels­güter

Bildungs­wesen

Medizin

Dual-Feed extruder

The innovative and versatile direct drive extruder has been designed for non-stop printing. The Dual-Feed extruder is able to print dual coloured objects, but can also be used as a mono extruder when inserting 2 of the same filament spools. The easy to swop nozzle can be replaced for a smaller/bigger nozzle diameter to influence print quality/time.

0,4–1,2 mm

Düsengröße

260°C

Extruder Temperatur

10–120 mm/s

Druckgeschwindigkeit

700 x 700 x 1.700 mm

Druckvolumen

Fast heating print bed

Despite its large build plate, heating of the print bed will only take 10 minutes. The maximum temperature of the heated bed is 70 degrees which is the optimal adhesion temperature for all kinds of industrial plastic filaments.

Design

The Extreme 2000 PRO has been designed efficiently to be able to offer place to all its key features without sacrificing print volume. Despite its huge print volume, the Extreme 2000 PRO is optimal for all workspaces. The filament spools and control box are integrated in the closed housing and will open for easy access, when slightly pushing the panels.

7 inch touch screen

The Extreme 2000 PRO comes with a 7 inch touch screen. The touch screen is ergonomically placed at a level for comfortable use. With the touch screen you have full control over the Extreme 2000 PRO and the print object. You cannot only control the nozzle and bed temperature, but you can also control the lights, camera, upload files from your mobile device and watch instruction videos. To unlock the doors, just simply press the door logo on the screen and the doors will open automatically.

Fully closed housing

The fully closed housing positively influence the print quality of the printed object and also reduces the sound of the machine by 40%. The transparent doors allow you to monitor the printing process at all times. For safety reasons the doors can only be opened when the print is paused. Press the door logo on the touch screen and the doors will automatically open. The Extreme 2000 PRO is air filter ready and a BOFA air filter can be added to the Extreme 2000 PRO as an option.

Printing 24/7

3D printing is the perfect tool to reduce costs and save time, especially when printing 24/7. The Builder Extreme is a reliable machine which can print hundreds of hours without stopping. The Builder Extreme is made in the Netherlands with high quality components like industrial linear guides. Running out of filament? No problem. The filament detection will give a warning when the filament needs to be refilled.

Materialien für Builder Extreme 2000 Pro

PLA Carbon

Erhöhte Härte und Festigkeit

PP

Hohe Schlagfestigkeit und Chemikalien

PLA Tough

Hart wie ABS, einfach zu drucken wie PLA

ASA-X CF10™

Widerstandsfähig gegen äußere Einflüsse mit einem schönen Carbon-Finish

Builder Extreme 2000 Pro Webinar

Damit Sie mit Ihrem neuen 3D-Drucker schnell produktiv arbeiten können, bieten wir Ihnen unseren Schnellstart-Kurs in Form eines Webinars (Web-basiertes Seminar) an: Nach 120 Minuten verstehen Sie die Funktionsweise der 3D-Drucksoftware.
Ablauf des Webinars
  • Einführung in die Funktionsweise und Bedienung der 3D-Drucksoftware
  • Überblick über die Bedeutung der Einstellungen
  • Die richtigen Einstellungen für Ihren perfekten 3D Ausdruck!
  • Tipps & Tricks
  • Trouble Shooting – Ursachen und Lösungen für die häufigsten Probleme
Voraussetzungen
  • Vorhandener, einsatzbereiter PC mit Windows 7, 8 oder Mac OS X mit vollen Administrator-Rechten
  • Internetzugang
  • Bereits installierte und funktionsbereite TeamViewer oder Microsoft Teams Software

Die Details zum Termin und der Webinar-Software werden nach Eingang Ihrer Bestellung abgesprochen.

Support und Service

  • Professionelle Beratung
  • Musterdruck Erstellung
  • Individuelle Pakete für Industriekunden
  • Einschulung vor Ort
  • Servicepaket mit kostenlosem Telefon- und Email Support
  • Gesamtlösung mit Waschstation
  • Bauteiloptimierung via Fernwartung
  • Materialversuche
  • Prozessoptimierungen
  • Kundenspezifische Seminare vor Ort
  • Vor Ort Service

Technische Daten

TechnologyFused Filament Fabricat ion (FFF)
Print headMono or Dual -Feed extruder
Build size700 x 700 x 1700 mm (XYZ)
Filament diameter1.75 mm
Layer height resolution0.1 – 0.8 mm
Print speedUp to 120 mm /s
Travel speedUp to 200 mm /s
Print speed10 – 120 mm/s
Build plateHeated glass build plate
Heated bedup to 70°C (heated in 10 minutes)
Levellingsemi-automatic (auto levelling expected Q2 2019)
Feeder typeDirect drive
Nozzle diameter0.4, 0.8, 1.2 mm (easy to swop)
Power rating1400 watt, after heating 800 watt
ConnectivityWiFi , USB port. Ethernet
Display7 inch full colour touch screen
On-board cameraLive camera view from desktop or mobile device
Filament detectionYes
Ups systemResume after power outage
Safety locking systemDoors only open after print is paused
CE certifiedYes
Outside dimensions134x 105 x 224 cm (LxWxH)
Shipping dimensions142 x 110 x 237 cm (LxWxH)
Supplied SoftwareSimpl ify3D
Printing MaterialPLA, PET, PROl (ABS replacement), Flexible filaments
